Measuring range:25t、50t / 50klb、100klb
Range: 25t, 50t / 50klb, 100klb
Features: The sensor elastomer alloy steel material; plastic seal or welding seal, the surface of nickel, waterproof, anti-corrosion, protection grade IP66.
Applications: Widely used in industrial process control, ingredient control systems and testing equipment, and other weighing force measuring equipment.
Parameters:
Precison : C1 |
| Temp. effect on span(%F.S/10℃): ±0.03 |
Comprehensive error(%F.S) : ±0.05 |
| Temp. effect on zero(%F.S/10℃) : ±0.05 |
Rated output(mv/v) : 3.0±0.01 |
| Compensated temp. range(℃ ) : -10~+40 |
Creep(%F.S/30min) : ±0.023 |
| Use temp. range(℃ ) : -20~+55 |
Zero balance(%F.S) : ±1.0 |
| Excitation voltage(V) : 9~12(DC) |
Input resistance(Ω) : 700±5 |
| Safe overload (%F.S) : 150 |
Output resistance(Ω) : 700±5 |
| Ultimate overload (%F.S) : 200 |
Insulation resistance(MΩ) : ≥5000(100VDC) |
| Defend grade : IP66 |

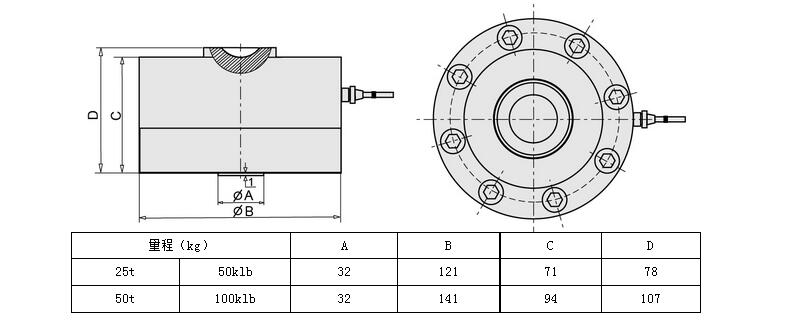

Installation size (mm):
Wiring schematic diagram:
Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )
Notes:It used 4-core shielded cable(φ5×3000mm)
Load instruction:
